Security Towers

Product Description

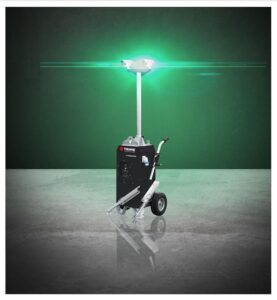

The Trime X-MONITOR is the ideal solution if you need a portable and easy-to-manage security tower!

Portable security tower with FULL PLUG-IN TECHNOLOGY.

Mast specifications:

• Maximum weight at mast top: 3 kg
• Maximum mast height: 2.5 m
• Rotation: No
• Mast type: Manual
• Certified wind stability: 40 km/h

Power options:

• Input power from mains or generator
• Internal battery pack

Note: The tower is supplied non-equipped, meaning the user must provide and install their own security monitoring equipment.

[download]

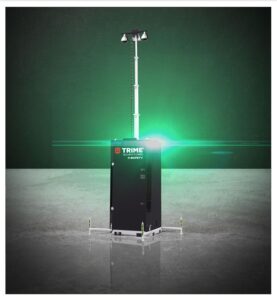

The Trime X-SAFETY is the perfect solution if you need an advanced, industry-grade static security tower.

Static security tower with FULL PLUG-IN TECHNOLOGY.

Mast specifications:

• Lifting method: Manual
• Maximum mast height: 5 m
• Rotation: No
• Safety brake: Mechanical

Power options:

• Input power from mains or generator

Dimensions:

• Transport dimensions (L x W x H): 1150 x 1150 x 2492 mm
• Operating dimensions (L x W x H): 2325 x 2350 x 6000 mm
• Weight: 524 kg

Note: The tower is supplied non-equipped, meaning the user must provide and install their own security monitoring equipment.

[download]

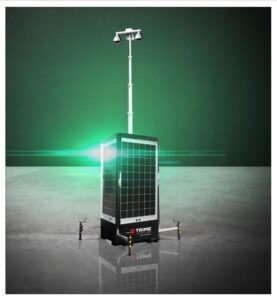

The Trime X-SOLAR SAFETY is the ideal eco-friendly security tower.
Equipped with special frames for solar panels, it ensures safety while reducing your CO₂ footprint.

Static security tower with FULL PLUG-IN TECHNOLOGY.

Mast:

• Lifting method: Manual
• Maximum mast height: 6 m
• Rotation: No
• Safety brake: Mechanical

Power options:

• Input power from mains or generator
• Predisposition for battery pack (not included)

Dimensions:

• Transport dimensions (L x W x H): 1220 x 1220 x 2500 mm
• Operating dimensions (L x W x H): 2500 x 2500 x 6000 mm
• Weight: 524 kg

Note: The tower is supplied non-equipped, meaning the user must provide and install their own security monitoring equipment.

[download]

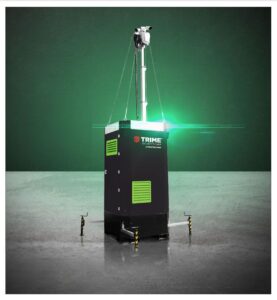

When searching for an advanced, industry-grade static security tower, look no further than the Trime X-PROTECTION.
Static security tower with FULL HYBRID TECHNOLOGY.

Mast:

• Lifting method: Manual
• Maximum height: 5 m
• Rotation: No
• Safety brake: Mechanical

Battery:

• Type: AGM
• Quantity: 4
• Battery pack power: 24 VDC – 400 Ah
• Expected battery cycles: 500

Engine:

• Model: Kubota Z482 Stage V
• Speed: 1500 rpm

Alternator:

• Model: Linz Electric
• Rated output: 3.5 kVA
• Frequency: 50 Hz
• Voltage: 220 V

Running Time (based on 100W power consumption):

• Battery only: 75 hours
• Total running time before refueling: 4663 hours

Dimensions:

• Transport (L x W x H): 1150 x 1150 x 2492 mm
• Operating (L x W x H): 2325 x 2350 x 6000 mm
• Weight: 1200 kg

Note: The tower is supplied non-equipped; users must supply and install their own security monitoring equipment.

[download]

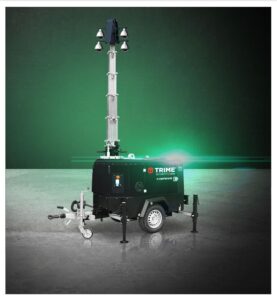

When looking for a reliable and efficient HYBRID mobile SECURITY unit, look no further than our X-DEFENCE.
Towable security tower with FULL HYBRID TECHNOLOGY.

Mast:

• Max weight at mast top: 40 kg
• Max height: 8 m
• Rotation: 350°
• Mast type: Hydraulic
• Certified wind stability: 80 km/h

Battery:

• Type: AGM
• Quantity: 4
• Battery pack power: 24 VDC – 400 Ah
• Charging time: 8 hours
• Noise-free running time: 76 hours
• Total running time before refueling (based on 100W power consumption): 4662 hours

Engine:

• Model: Kubota Z482
• Fuel: Diesel
• Speed: 1500 rpm
• Tank capacity: 220 liters
• Fuel consumption: 0.5 l/h

Dimensions:

• Internal (L x W x H): 150 x 270 x 410 mm
• External (L x W x H): 2900 x 2340 x 8000 mm
• Total weight without fuel: 1380 kg

NOTE: Tower is supplied non-dressed; users must supply and install their own security monitoring equipment.

[download]
