HANSA Multifunctional Vehicles

Product Description

HANSA APZ 1003 multifunctional vehicles are designed for municipal services, infrastructure and road maintenance, landscaping, winter service, transport and a wide range of professional applications.

Their compact design, hydrostatic all-wheel drive and hydrostatic all-wheel steering provide excellent manoeuvrability, including in narrow or difficult-to-access areas. Depending on the model, the APZ 1003 range covers a broad variety of configurations, from the compact 3.5-ton version to the 9.5-ton XL model.

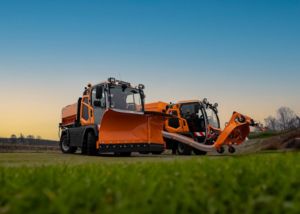

Thanks to the extensive range of interchangeable attachments and implements, the same vehicle can be configured for different tasks throughout the year, including sweeping, mowing and collection, snow removal, transport, material handling and many more applications.

HANSA APZ 1003 K – 3.5 t

Compact, agile and ready for everyday work.

The 3.5-ton version is the most compact model in the APZ 1003 range and provides a highly versatile solution for municipal and maintenance work in confined areas.

With a width of only 1,300 mm and a compact wheelbase, it offers excellent manoeuvrability. The DEUTZ turbo diesel engine and powerful hydraulic system enable the use of a wide variety of attachments and working equipment.

Key specifications

• Gross weight: approx. 3,500 kg
• Payload: approx. 1,100 kg
• Engine: DEUTZ turbo diesel
• Engine model: TCD 2.9 L4
• Power: 75 HP
• Hydraulic system: 170 l
• Max. pressure: 300 bar
• Length: 3,650 mm
• Width: 1,300 mm
• Height: 2,250 mm
• Wheelbase: approx. 1,950 mm

HANSA APZ 1003 K

Compact dimensions with significantly higher working capacity.

The APZ 1003 K retains the highly compact format of the 3.5-ton version while offering a permissible gross weight of approximately 7.1 tonnes and a payload of around 4.2 tonnes.

It is an excellent choice when both narrow dimensions and the capacity to carry demanding professional equipment are required. The standard engine delivers 75 HP, while a 175 HP version is also available as an option.

Key specifications

• Gross weight: approx. 7,100 kg
• Payload: approx. 4,200 kg
• Engine: DEUTZ turbo diesel
• Engine model: TCD 2.9 L4
• Power: 75 HP
• Optional power: 175 HP
• Hydraulic system: 170 l
• Max. pressure: 400 bar
• Length: 3,650 mm
• Width: 1,300 mm
• Height: 2,250 mm
• Wheelbase: approx. 1,950 mm

HANSA APZ 1003 M

More space for equipment, with the same HANSA agility.

The APZ 1003 M expands the compact platform of the series, with a total length of 3,900 mm and a wheelbase of approximately 2,250 mm.

Its configuration provides additional space for attachments and superstructures while maintaining a narrow overall width of only 1,300 mm. The model can be equipped with a 75 HP engine or, optionally, with the 175 HP version.

Key specifications

• Gross weight: approx. 7,100 kg
• Payload: approx. 4,100 kg
• Engine: DEUTZ turbo diesel
• Engine model: TCD 2.9 L4
• Power: 75 HP
• Optional power: 175 HP
• Hydraulic system: 170 l
• Max. pressure: 400 bar
• Length: 3,900 mm
• Width: 1,300 mm
• Height: 2,250 mm
• Wheelbase: approx. 2,250 mm

HANSA APZ 1003 L

High capacity for demanding professional applications.

The HANSA APZ 1003 L moves the range towards higher-capacity configurations. With a 175 HP IVECO turbo diesel engine, a width of 1,500 mm and a payload of approximately 4,400 kg, the vehicle can accommodate complex attachments and superstructures for intensive professional use.

The wheelbase can be configured depending on the application, providing additional flexibility for different types of equipment.

Key specifications

• Gross weight: approx. 7,490 kg
• Payload: approx. 4,400 kg
• Engine: IVECO turbo diesel
• Engine model: F1C 3.0 EU6
• Power: 175 HP
• Hydraulic system: 170 l
• Max. pressure: 400 bar
• Length: 4,250 mm
• Width: 1,500 mm
• Height: 2,350 mm
• Wheelbase: 2,200–3,500 mm

HANSA APZ 1003 XL

A generous platform for a wide range of configurations.

The APZ 1003 XL provides additional space and flexibility for larger attachments and superstructures. With a width of 1,750 mm, a 175 HP engine and a hydraulic system operating at up to 400 bar, it is designed for demanding municipal and professional applications.

It is an ideal platform for operators looking for a single vehicle capable of performing numerous tasks throughout the entire year.

Key specifications

• Gross weight: approx. 7,490 kg
• Payload: approx. 4,100 kg
• Engine: IVECO turbo diesel
• Engine model: F1C 3.0 EU6
• Power: 175 HP
• Hydraulic system: 170 l
• Max. pressure: 400 bar
• Length: 4,250 mm
• Width: 1,750 mm
• Height: approx. 2,350 mm
• Wheelbase: 2,550–3,015 mm

HANSA APZ 1003 XL – 9.5 t

The highest-capacity model in the APZ 1003 range.

The 9.5-ton APZ 1003 XL is designed for applications requiring increased transport capacity and heavy-duty attachments.

With a payload of approximately 5,500 kg, it provides the highest load capacity among the models presented here. The 175 HP IVECO turbo diesel engine and hydraulic system operating at up to 400 bar provide the performance required for complex professional attachments and intensive applications.

Key specifications

• Gross weight: approx. 9,500 kg
• Payload: approx. 5,500 kg
• Engine: IVECO turbo diesel
• Engine model: F1C 3.0 EU6
• Power: 175 HP
• Hydraulic system: 170 l
• Max. pressure: 400 bar
• Tyres: 425/55 R17
• Length: 4,250 mm
• Width: 1,750 mm
• Height: approx. 2,350 mm
• Wheelbase: 2,800–3,500 mm

One vehicle for every season

The key advantage of the HANSA APZ 1003 series is its modularity. The vehicles can operate with numerous interchangeable attachments and superstructures, transforming the same platform into a machine adapted to the task at hand.

Available configurations include:

• Road sweepers

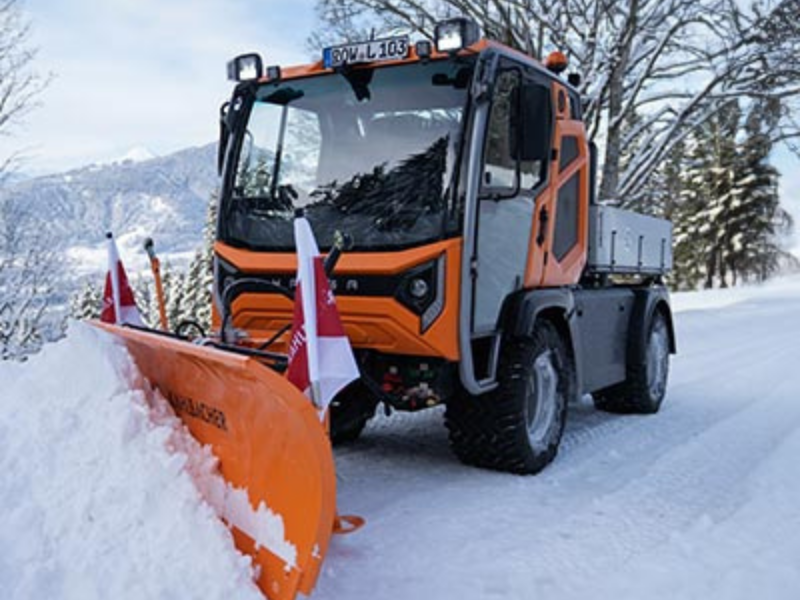

• Snow ploughs

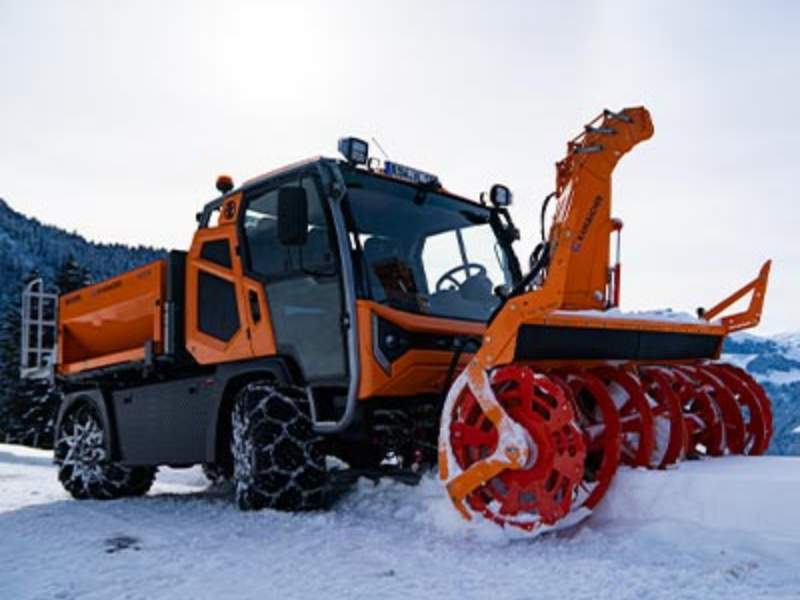

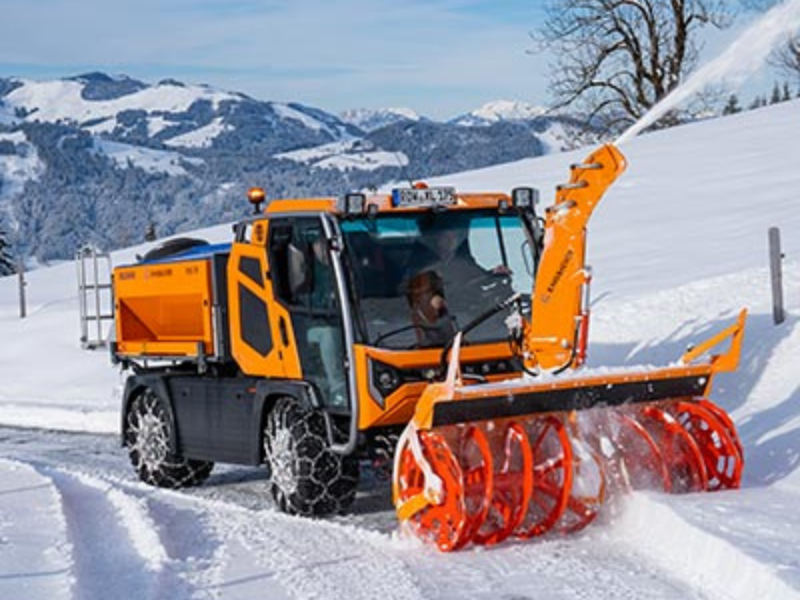

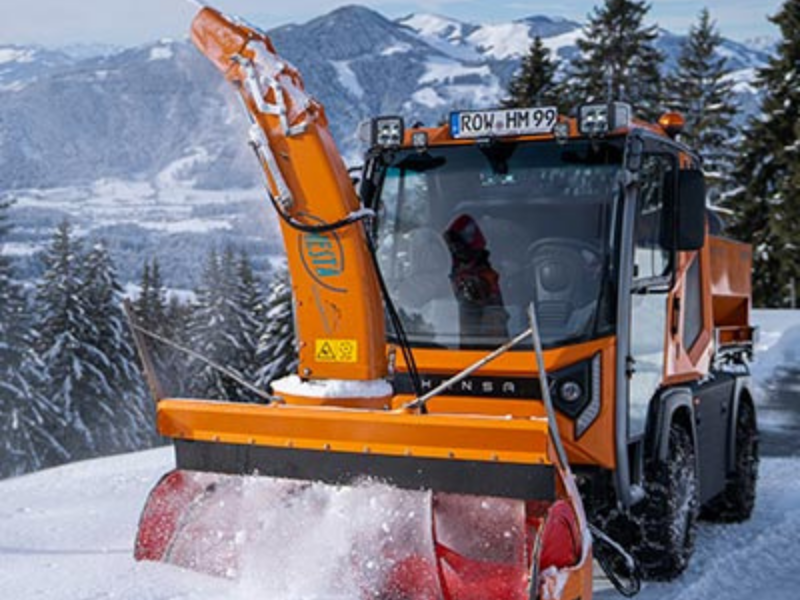

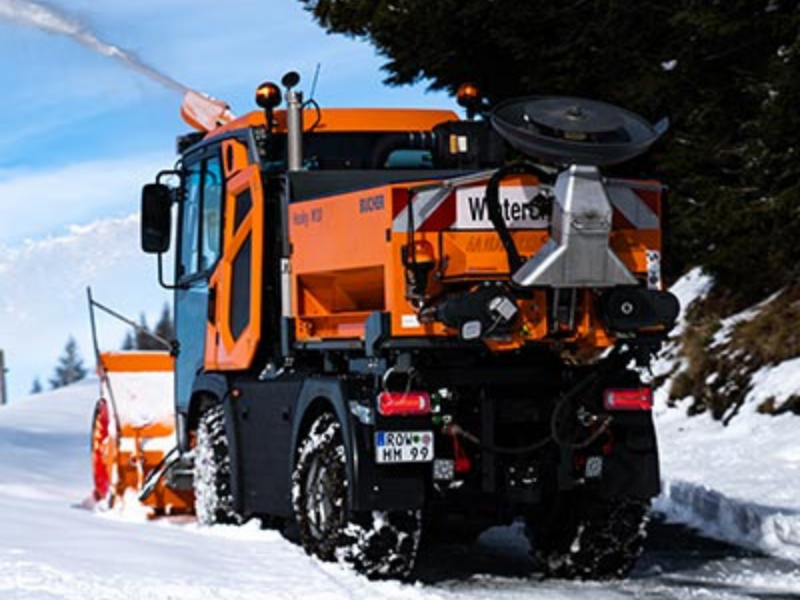

• Snow blowers

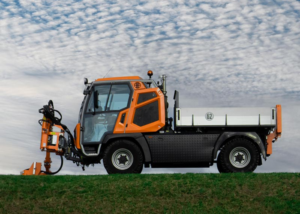

• Mowing systems
• Mowing and suction systems

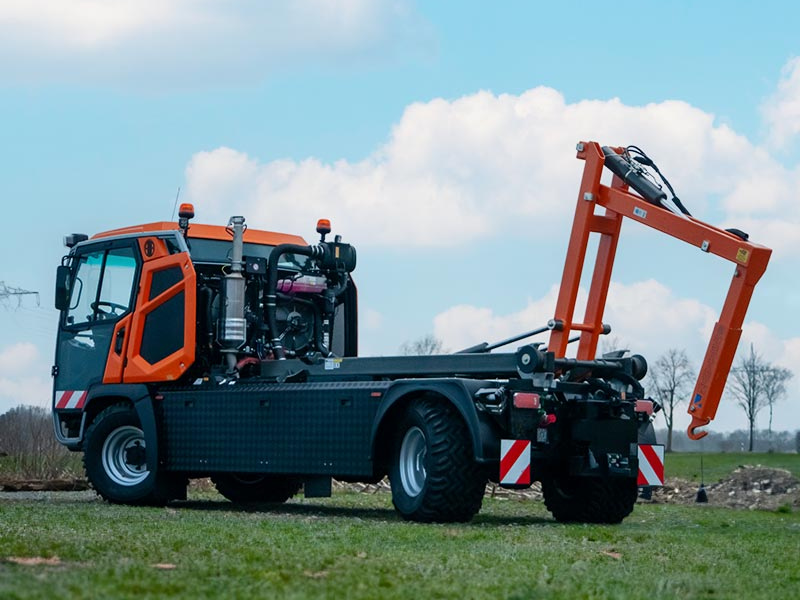

• Cranes
• Material handling equipment
• Front-mounted equipment

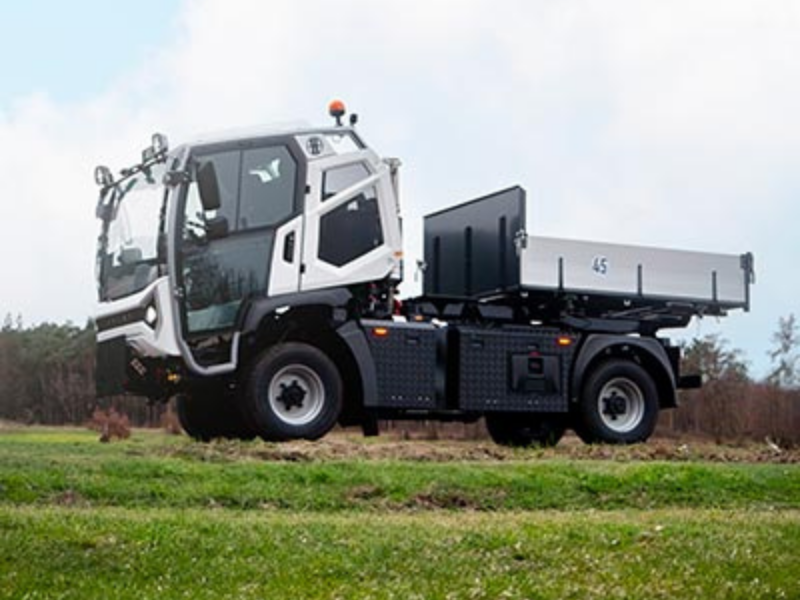

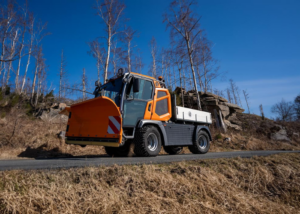

• Transport superstructures

This allows a single vehicle to be used for road and green-area maintenance during spring and summer, cleaning operations throughout the year and snow removal during winter.

Comfort, control and accessibility

APZ 1003 models feature hydrostatic all-wheel drive and hydrostatic all-wheel steering, providing precise control and excellent manoeuvrability.

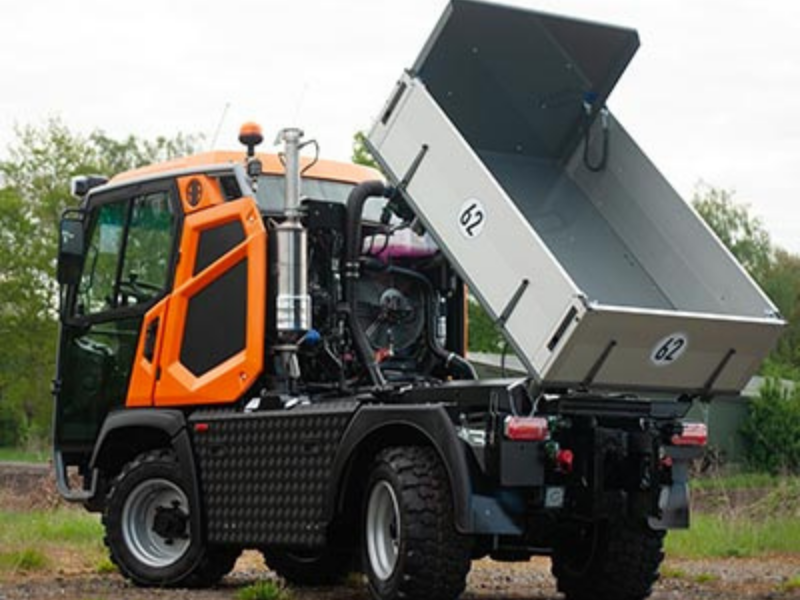

The cab is mounted to minimise the transmission of vibrations to the operator and can be hydraulically tilted to provide convenient access to important components for servicing and maintenance.

HANSA in Romania through B.T. Best Tools Company

B.T. Best Tools Company is a HANSA distributor in Romania, providing customers with a complete solution, from selecting the right vehicle and configuration to operation, servicing and long-term support.

We provide support throughout the entire process:

• Consultation and vehicle selection
• Equipment configuration
• Quotations and delivery
• Commissioning
• Operator training
• Service and maintenance
• Spare parts
• Technical support

Every application is different. That is why we help you configure the HANSA vehicle and attachments that best match the work you need to perform.

Looking for a HANSA multifunctional vehicle?

Contact the B.T. Best Tools Company team for expert advice, vehicle configuration and a personalised quotation.
