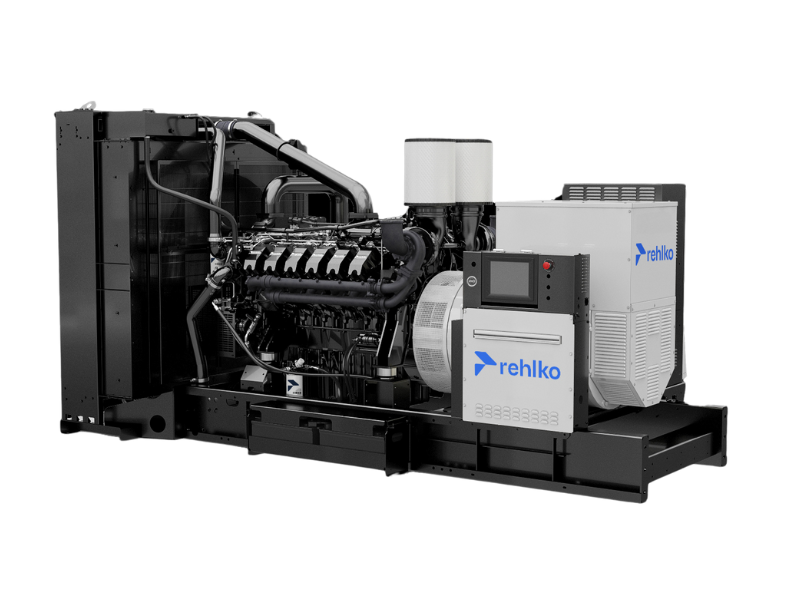

Kohler KD1100 Generator Set

Product Description

General Description

The Kohler KD1100 generator set is a diesel-powered unit manufactured in France, capable of producing 1100 kVA in emergency mode and 1000 kVA in continuous operation, operating at a frequency of 50 Hz and a speed of 1500 rpm. The supplied voltage is 400 / 230 V.

Engine

The generator is equipped with a KOHLER KD Series engine with a displacement of 26.97 liters, providing a maximum power of 979 kW:

– Number of cylinders: 12
– Fuel: Diesel
– Cooling system type: Radiator
– Fuel consumption at 100% load: 226.4 l/h
– Fuel consumption at 75% load: 169.7 l/h
– Fuel consumption at 50% load: 113.2 l/h

Alternator

The generator set features a Kohler alternator with direct coupling, self-excited without brushes, insulation class H, protection degree IP 23, with 3 phases / 4 poles.

Constructive Elements

The generator includes a 1035-liter tank integrated under the chassis, electronic speed regulator, pre-heating system for the coolant (for easy starting in cold seasons), 12V starting system, rectifier for battery charging when the generator is not in operation, alternator for charging the battery during engine operation, and vibration dampers placed between the chassis and the engine-alternator assembly.

APM403 Digital Controller

The control panel is user-friendly even for untrained personnel, designed to provide extensive details about the generator set’s operation. The controller incorporates numerous measuring instruments for generator operation, signaling devices for faults and more, control keys, and indicators for various warning messages and correct operation of the entire assembly.

Soundproof Canopy

The soundproof canopy is constructed from sturdy elements, painted to the highest standards. It is equipped with doors that allow easy access to the generator set’s components for quick and easy interventions. The soundproofing capacity of the canopy is impressive, reducing the noise level to 87 dB at 1 meter and 78 dB at 7 meters.

• Soundproofed generator dimensions: L 6413 mm x W 2160 mm x H 2750 mm.
• Total weight: 9000 kg.

AAR VERSO 200 S – 1600 A Source Inverter (OPTIONAL)

• Panel dimensions: 1600mm x 606mm x 442mm.
• Protection for ±15% fluctuations in frequency and voltage;
• Phase sequence protection for both the grid and the set;
• Phase loss protection.
• LED for signaling the phase sequence related to the grid and the set;
• LED for the status of the electrical grid or the set;
• LED for the position of the contactor for the grid and the set.

After-Sales Services

In addition to Kohler generator sets, Best Tools offers complete services: consultancy, training, warranties, maintenance contracts, a complete range of related equipment, delivery, installation, and commissioning. Best Tools Company technicians are directly trained by KOHLER, regularly participating in training sessions organized in Brest, France. National coverage is ensured by over 15 mobile service laboratories and personnel located at key points in Romania. The central service laboratory in Bucharest lives up to the expectations of the premium manufacturers we represent.

BEST TOOLS COMPANY & KOHLER

Kohler Company was established in 1873 in the United States. In 1920, Kohler produced the first modern generator. Its generator set division has become increasingly efficient, especially after acquiring the French manufacturer SDMO Industries. At present, Kohler is the third most important generator set manufacturer in the world, being a true trendsetter in the field.

Best Tools Company is the exclusive Kohler dealer in Romania and neighboring countries, distributing the complete range of products from the renowned manufacturer, from portable generators to high-power generator sets (1 – 4500 kVA).
