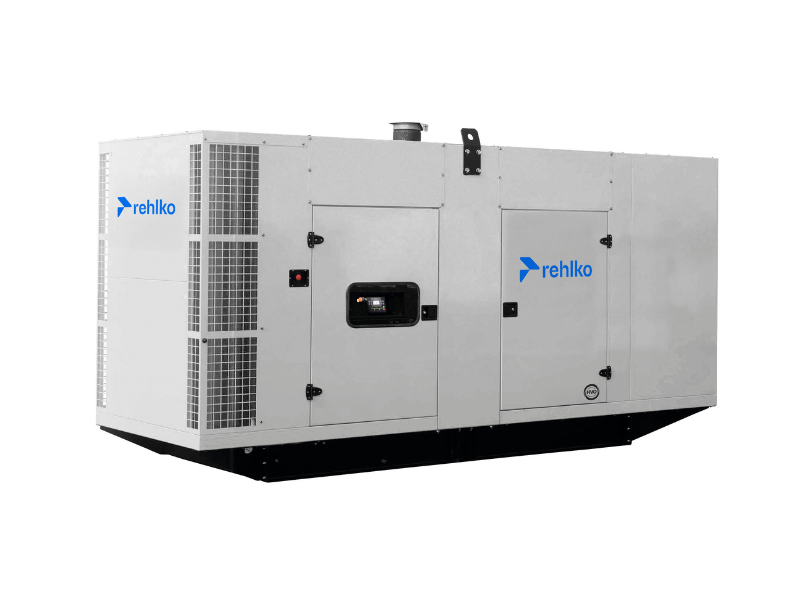

Kohler D830 Generator Set

The Kohler D830 generator set is specifically designed to meet the most demanding requirements, both in standby and Prime applications. Explore the generator and contact us. A Best Tools representative will provide you with all the relevant information, and if necessary, guide you to the perfect generator for your project.

*For price quotes and other details, please contact us.

Product Description

General Description

The Kohler D830 generator set is a diesel-powered unit manufactured in France, with emergency power ratings of 825 kVA and continuous power ratings of 750 kVA, operating at a frequency of 50 Hz and a speed of 1500 rpm. The supplied voltage is 400/230V.

Powertrain

The generator is equipped with a DOOSAN engine with a displacement of 21.93 liters, providing a maximum power output of 723 kW:

  • Number of cylinders: 12
  • Fuel: Diesel
  • Cooling system type: Radiator
  • Fuel consumption at 100% load: 161 l/h
  • Fuel consumption at 75% load: 119.1 l/h
  • Fuel consumption at 50% load: 79.3 l/h

Alternator

The generator set features a Kohler alternator with direct coupling, self-excited without brushes, insulation class H, protection degree IP 23, with 3 phases / 4 poles.

Constructive Elements

The generator is equipped with a 610-liter fuel tank, an electronic speed regulator, a preheating system for the coolant (facilitating easy starting in cold seasons), a 12V starting system, a rectifier for charging the battery when the generator is not in operation, an alternator for charging the battery during engine operation, and vibration dampers placed between the chassis and the engine-alternator assembly.

APM303 Digital Controller

The control panel is user-friendly, even for unskilled personnel, designed to provide extensive details about the generator set’s operation. The controller incorporates numerous measuring instruments for generator operation, signaling devices for faults and more, control keys, and indicators for various warning messages and correct operation of the entire assembly.

Soundproof Canopy

The soundproof canopy is constructed from durable elements, painted to the highest standards. It is equipped with doors that allow easy access to the generator set components for quick and easy interventions. The soundproofing capacity of the canopy is impressive, reducing the noise level to 86 dB at 1 meter and 76 dB at 7 meters.

  • Generator Dimensions: L 5031 mm x W 1690 mm x H 2672 mm.
  • Total Weight: 5720 kg.

AAR VERSO 200 S – 1000 A Source Inverter (OPTIONAL)

  • Panel Dimensions: 1600mm x 606mm x 442mm.
  • Protection for ±15% fluctuations in frequency and voltage;
  • Protection against phase direction in the network and the group;
  • Protection against phase lack.
  • LED for signaling the phase direction related to the network and the group;
  • LED for the status of the electrical network or the group;
  • LED for the position of the contactor for the network and the group.

After-Sales Services

In addition to KOHLER generators, Best Tools provides complete services: consultancy, training, warranties, maintenance contracts, a complete range of related equipment, delivery, installation, commissioning. Best Tools Company technicians are directly trained by KOHLER, regularly participating in training sessions organized in Brest, France. National coverage is ensured by over 15 mobile service laboratories and staff located at key points in Romania. The central service laboratory in Bucharest meets the expectations set by the premium manufacturers we represent.

BEST TOOLS COMPANY & KOHLER

Kohler was established in 1873 in the United States. In 1920, Kohler produced the first modern generator. Its generator division became increasingly efficient, especially after acquiring the French manufacturer SDMO Industries. At present, Kohler is the third most important generator manufacturer globally, being a true trendsetter in the field.

Best Tools Company is the exclusive Kohler dealer in Romania and neighboring countries, distributing the complete range of the renowned manufacturer, from portable generators to high-power generator sets (1 – 4500 kVA).
