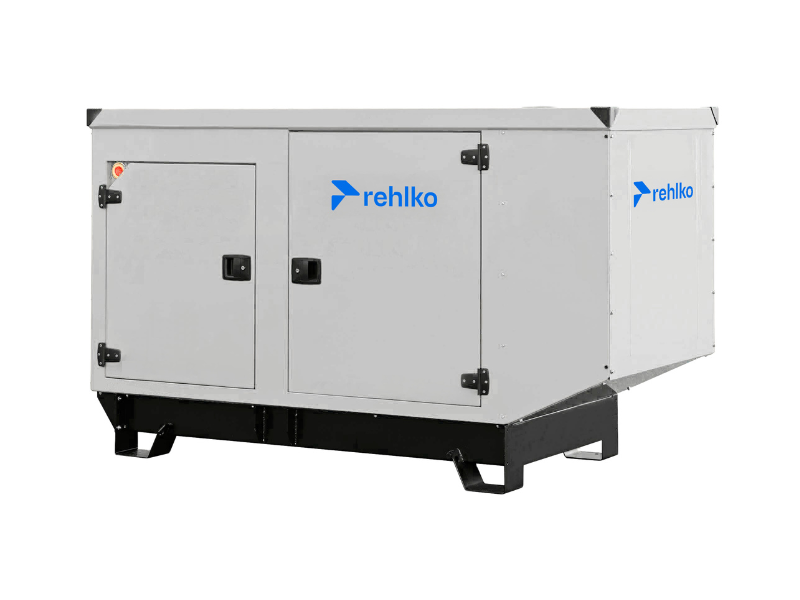

Kohler J110 Generator Set

Product Description

General Description

Kohler J110 Diesel Generator, manufactured in France, with powers of 110 kVA in emergency mode and 100 kVA in continuous mode, at a frequency of 50 Hz and a speed of 1500 rpm. Supplied voltage: 400 / 230 V.

Engine

The generator is equipped with a 4.48 L JOHN DEERE engine, with a maximum power of 103 kW:

• Number of cylinders: 4
• Fuel: diesel
• Cooling system type: radiator
• Consumption at 100% load: 23.8 l/h
• Consumption at 75% load: 19.9 l/h
• Consumption at 50% load: 12.6 l/h

Alternator

The generator is equipped with a Kohler alternator with direct coupling, self-excited without brushes, insulation class H, protection degree IP 23, with 3 phases / 4 poles.

Constructive Elements

The generator is equipped with a 190-liter tank integrated under the chassis, electronic speed regulator, preheating system for the cooling liquid (for easy starting in cold seasons), 12V starting system, rectifier for charging the battery when the generator is not operating, alternator for charging the battery during engine operation, and vibration dampers placed between the chassis and the engine-alternator assembly.

APM303 Digital Controller

The control panel is easy to use even for unskilled personnel, designed to provide a wealth of details about the operation of the generator. The controller incorporates dozens of instruments to measure the generator’s operation, signaling devices for faults and more, command buttons, and indicators for various warning messages and proper operation of the entire assembly.

Soundproof Hood

The soundproof hood is built from resistant elements, painted to the highest standards. The hood is equipped with doors that allow easy access to the generator components for quick and easy interventions. The soundproofing capacity of the hood is impressive, reducing the noise level to 80 dB at 1 meter and 68 dB at 7 meters.

• Dimensions of the soundproof generator: L 2572 mm x W 1126 mm x H 1571 mm.
• Total weight: 1335 kg.

AAR VERSO 100 S – 160 A source inverter (OPTIONAL)

• Panel dimensions: 385mm x 385mm x 193mm.
• Protection for fluctuations of ±15% in frequency and voltage;
• Protection for phase sequence in the network and the group;
• Protection for lack of phase.
• LED for signaling the phase sequence related to the network and the group;
• LED for the status of the electrical network or the group;
• LED for the position of the contactor for the network and the group.

After-Sales Services

In addition to Kohler generators, Best Tools offers complete services: consultancy, training, warranties, maintenance contracts, a complete range of related equipment, delivery, assembly, and commissioning. Best Tools Company technicians are trained directly by KOHLER, regularly participating in training sessions organized in Brest, France. National coverage is ensured by over 15 mobile service laboratories and personnel located in key points in Romania. The central service laboratory in Bucharest meets the expectations of the premium manufacturers we represent.

BEST TOOLS COMPANY & KOHLER

Kohler Company was established in 1873 in the United States of America. In 1920, Kohler produced the first modern generator. Its generator division has become increasingly efficient, especially after acquiring the French manufacturer SDMO Industries. Currently, Kohler is the third most important generator manufacturer in the world, being a true trendsetter in the field.

Best Tools Company is the exclusive Kohler dealer in Romania and neighboring countries, distributing the complete range of the renowned manufacturer, from portable generators to high-power generators (1 – 4500 kVA).
