Multi Power MPW 294

Multi Power MPW 294

Product Description

1-28 x 42 kW up to 1 MW + redundancy

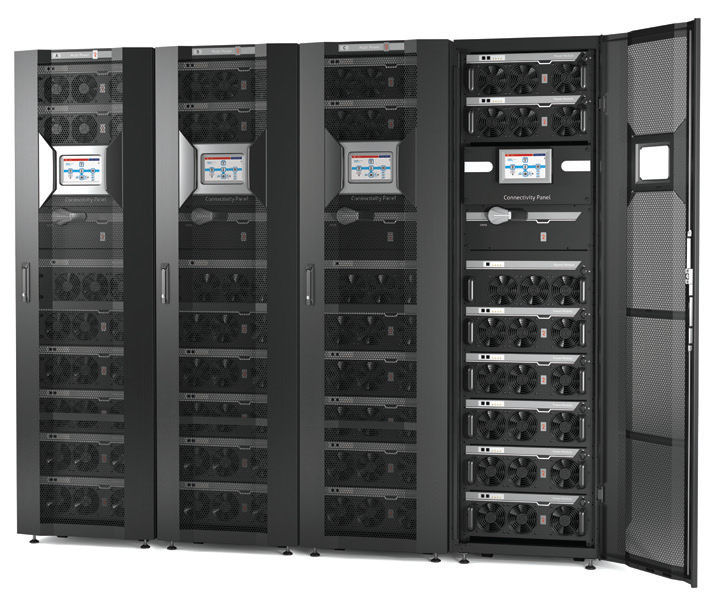

The Riello MULTI POWER (MPW) is the ultimate modular UPS for DATA CENTRES and other CRITICAL LOADs.
The MULTI POWER is designed to protect any critical high-density computer and IT environment, whilst achieving maximum availability. The MPW grows along with the demands of the business without oversizing the UPS – optimizing both the initial investment and the Total Cost of Ownership. As soon as demand increases, the Riello MPW modular solution can expand its power capability, maintaining the highest levels of power protection, availability, redundancy and investment savings.

Digital technology has an increasingly strong influence on day-to-day activities in almost all sectors and applications such as healthcare, power generation, social networking, telecommunications, commerce and education.
Subsequently, any activities and equipment related to data storage, processing and transfer should be supplied from the most reliable power source. Multi Power ensures that a scalable, secure, high quality power supply is available for a variety of critical load applications. The new MPW Power Modules feature the very latest in UPS technology. With its three level Neutral Point Clamped (NPC) inverter and Power Factor Corrected (PFC) input control, the MPW ensures the highest level of performance in terms of overall efficiency, input power factor and harmonic impact on the supply source.

Technical specifications of the model MPW 294
Models MPW 294
INPUT
Rated power from 42 to 294 kW VA
Frequency tolerance 40 to 72
Power factor 1
Current distorsion < 3,5
Voltage Range 240 to 480
BY PASS
Rated voltage 380-400-415 Vac, three-phase + N
OUTPUT and INVERTER OUTPUT
Rated power 294 kW VA
Active power 294 kW W
Number phases 3
Output Voltage 380/400/415 Vac, three-phase + N
Dynamic stability EN 62040-3 class performance 1 distorting load
Frequency 50 or 60
Load power factor 1
ENVIRONMENTAL
Color RAL 9005
Safety compliance EN 62040-1:2008; EN 62040-1/EC:2009; EN 62040-1/A1:2013 and Directive 2014/35/EU
EMC conformance EN 62040-2 and Directive 2014/30/EU
Protection rating IP 20 finger proof (either with cabinet doors open or close)
Noise < 68
DATA
Weight 300 Kg
Dimensions (h w d) 610x1046x2000 mm
Input phases 3
Output phases 3
