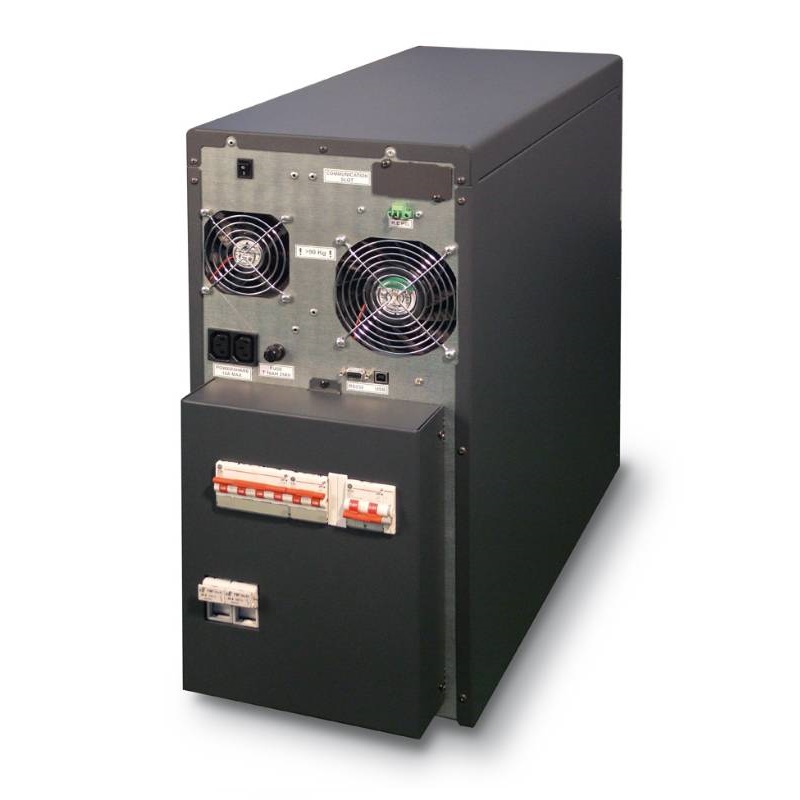

Sentinel Power SPT 6500 este o sursa neintreruptibila de tensiune ce ofera protectie maxima. Performantele sursei sunt garantate de producatorul Riello, cel mai important jucator in piata de UPS-uri la nivel mondial. Daca ai intrebari, contacteaza-ne. Un reprezentant Best Tools iti va oferi toate detaliile de care ai nevoie.
*Pentru cotatii de pret si alte informatii, contacteaza-ne!
Gama Sentinel Power este solutia ideala pentru alimentarea aplicatiilor sensibile, critice, cum ar fi dispozitivele de siguranta (aparatura electro-medicala), asigurând o fiabilitate maxima a energiei. Gama include modele de 5-6 kVA monofazice/monofazice si de 6,5-8-10 kVA monofazice/monofazice si trifazice/monofazice, cu tehnologie de conversie dubla on-line (VFI): consumatorul este alimentat continuu de invertor, care asigura o tensiune sinusoidala, filtrata si stabilizata ca forma si frecventa. Filtrele de intrare si iesire cresc în mod semnificativ imunitatea consumatorului la perturbarile de pe retea si la lovituri de fulger.
Ca tehnologie si performante (posibilitate de selectare a modului Economy sau Smart Active) si diagnoza (afisaj digital LCD special, interfete RS232 si USB cu soft PowerShield3, intrare ESD, sloturi de interfata cu placi optionale), Sentinel Power este una dintre cele mai bune UPS-uri disponibile pe piata la ora actuala.
Technical specifications of the model | SPT 6500 |
Models | SPT 6500 |
INPUT | |
Rated power | 6500 VA |
Voltage | 220-230-240 Vac single-phase or 380-400-415 Vac three-phase with neutral Vac |
Voltage tolerance | 170 Vac @ load 100% / 140 Vac @ load 50% |
Frequency | 50/60 Hz ± 5 Hz |
BY PASS | |
Voltage tolerance | 180÷264 Vac (selectable in Economy Mode and SMART ACTIVE Mode) |
Frequency tolerance | Selected frequency ± 5% (user configurable) |
OUTPUT and INVERTER OUTPUT | |
Rated power | 6500 VA |
Active power | 5200 W |
Crest factor (Ipeak/Irms) | 3 : 1 |
Waveform | Sinewave |
Frequency | 50/60 Hz selectable |
Voltage distortion with distorcing load | <6% |
Voltage distortion with linear load | <3% |
OVERLOAD TIMES | |
100% < Load < 110% | 1 min |
125% = Load < 150% | 4 s |
Load > 150% | 0.5 s |
BATTERIES | |
Typical recharge time | 2÷4 h |
ENVIRONMENTAL | |
Color | Dark grey RAL 7016 |
Safety compliance | EN 62040-1:2008; EN 62040-1/EC:2009; EN 62040-1/A1:2013 and Directive 2014/35/EU |
EMC conformance | EN 62040-2 and Directive 2014/30/EU |
Accessories provided | software, 1 serial cable |
Protection rating | 3 |
Communication slot | RS232 + USB + remote contacts + communication interface slot |
Protections | Overload – short-circuit – overvoltage – undervoltage – temperature – low battery |
Line-Interactive/Smart Active efficiency | 98% |
Noise | < 45 dBA at 1 m |
Operating temperature | 0°C / +40°C |
Relative humidity | < 95% non condensing |
DATA | |
Weight | 91 Kg |
Dimensions (h w d) | 615x282x785 mm |
