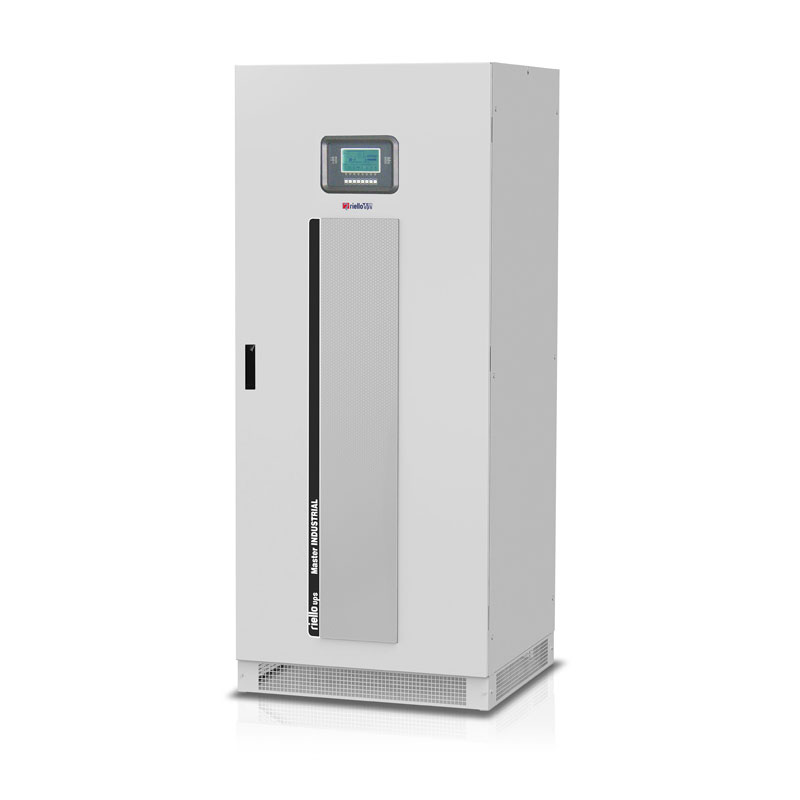

Master Industrial MIM 30

Sursa UPS Master Industrial MIM 30

Descriere produs

Ideal pentru instalații industriale

UPS-urile de seria industrială oferă protecție maximă și energie de calitate pentru orice tip de încărcătură, în special aplicații industriale, cum ar fi fabricația, dar și procesele petrochimice, distribuția electrică și centralele electrice.

Master Industrial este un UPS cu dublă conversie on-line (clasa VFI SS 111 în conformitate cu IEC EN 62040-3) cu transformatoare de izolație de intrare și ieșire.



Technical specifications of the model MIM 30
Models MIM 30
INPUT
Rated power 30000 VA
Voltage 400 Vac three-phase Vac
Voltage tolerance ± 20%
Frequency 50/60 Hz with autorange
Frequency tolerance 45/65 Hz
Power factor 0.93
Current distorsion <5%
Soft start 0-100% in 10″
BY PASS
Rated voltage 400 Vac three-phase selectable 380 and 415
Voltage tolerance ± 15% (selectable from ± 10% to ± 25% from front panel)
Rated frequency 50/60 Hz (autorange)
Frequency tolerance ± 2% (selectable from ± 1% to ± 5% from front panel)
Number phases 3
Back-feed protection yes
Overload capacity Inx10ms 14
OUTPUT and INVERTER OUTPUT
Rated power 30000 VA
Active power 24000 W
Number phases 3 + N
Crest factor (Ipeak/Irms) 3 : 1
Waveform Sinewave
Static stability ± 1%
Dynamic stability ± 5% in 5 ms
Frequency same as the input (autorange)
Voltage distortion with distorcing load <3%
Voltage distortion with linear load 1% (rated) 2% (max)
Frequency stability ± 0,05% on mains failure ± 2% (selectable from ± 1% to ± 5% from front panel) with mains supply present
Inverter efficiency at rated load 95% %
Overload 125% 150% 200% of the rated current for 10^ / 1^ / 7§
RECTIFIER OUTPUT
Ripple <1%
BATTERIES
Type Maintenance-free sealed lead-acid
Maximum recharge current 0.2xC10
ENVIRONMENTAL
Altitude max 1000 m
Color Light grey RAL 7035
Remote controls EPO and bypass
Safety compliance EN 62040-1:2008; EN 62040-1/EC:2009; EN 62040-1/A1:2013 and Directive 2014/35/EU
EMC conformance EN 62040-2 and Directive 2014/30/EU
Protection rating 3
Cooling (type) redundant fans
AC/AC efficiency 92,5%
Noise 63 dBA at 1 m
Remote signals voltage free contacts (mains power failure, UPS on bypass, end of discharge pre-alarm, output 12Vdc 80mA)
Operating temperature 0 ÷ 40 °C
Relative humidity 95% no condensing
DATA
Weight 850 Kg
Dimensions (h w d) 1900x800x800 mm
